White Jetting Technology(WJP) can jet CMYWK color with UV light cured resin through multiple nozzles, now it is available at a more affordable price.
The J400Plus is the self invented latest launched model, which provides full-color range, adjustable softness options, and can print transparent parts such as glass (with post process)
G Factor is the authorised distributor in South East Asia, supporting all the operations for WJP business.

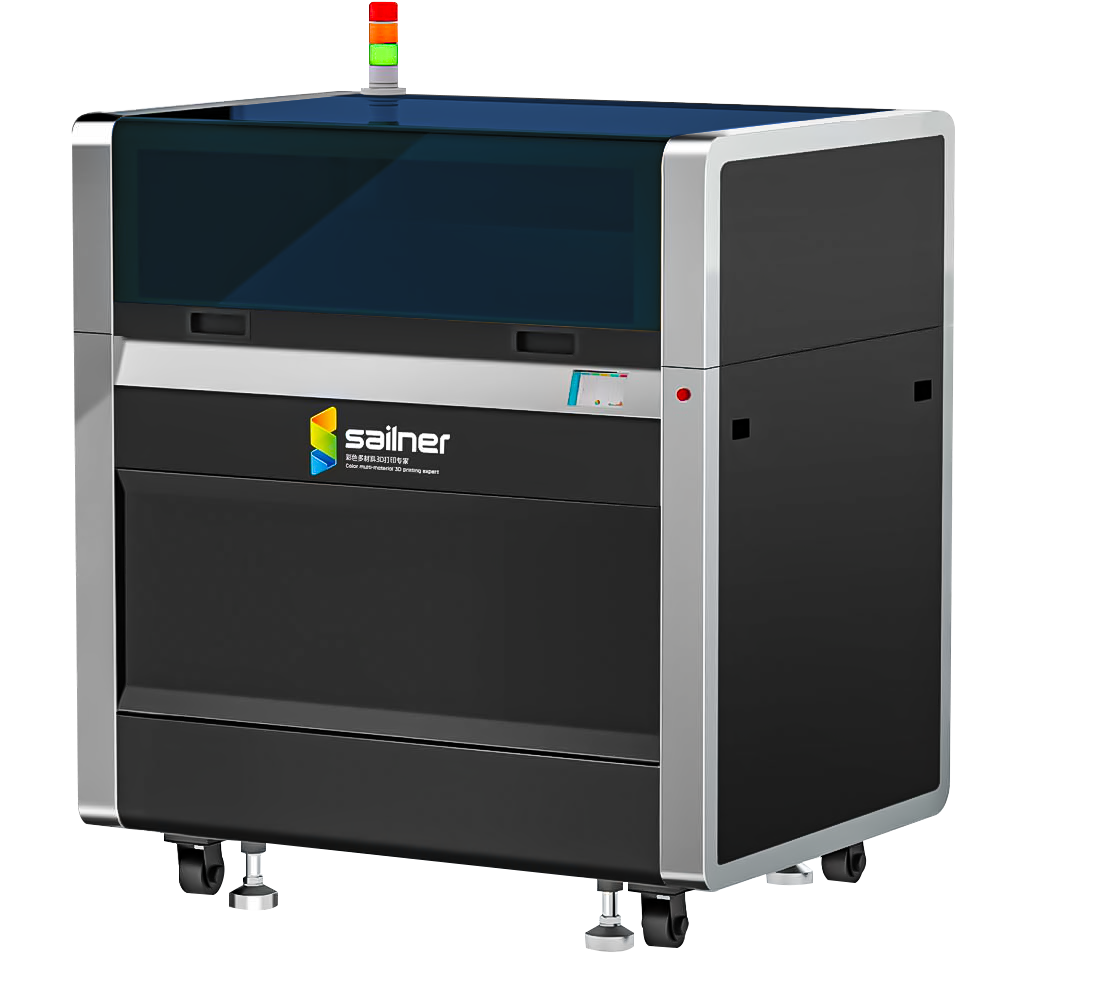

▲ ▲▲ WJP 3D Printer: Sailner J400 Plus
▲ ▲▲ WJP 3D Printer: Sailner J400 Plus

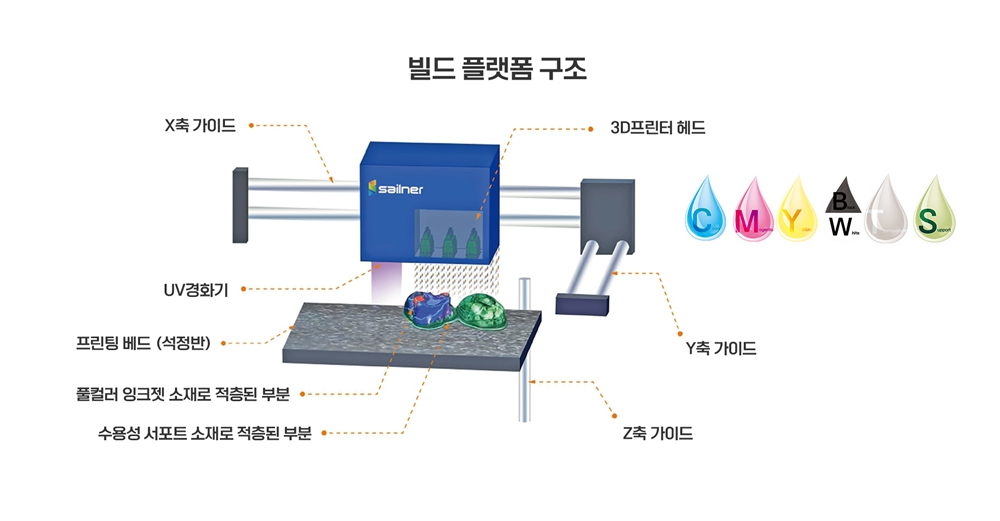

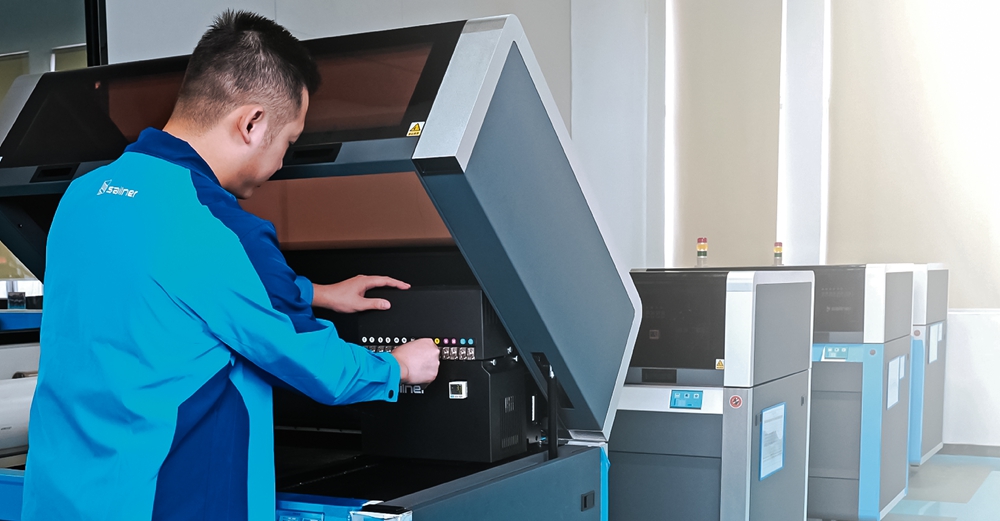

WJP technology is a 3D printing method independently developed by Zhuhai Sailner 3D Technology, which combines inkjet printing technology with additive manufacturing technology. It is a method of spraying light cured resin containing color, softness, and transparency into multiple nozzle and jetting layer by layer.

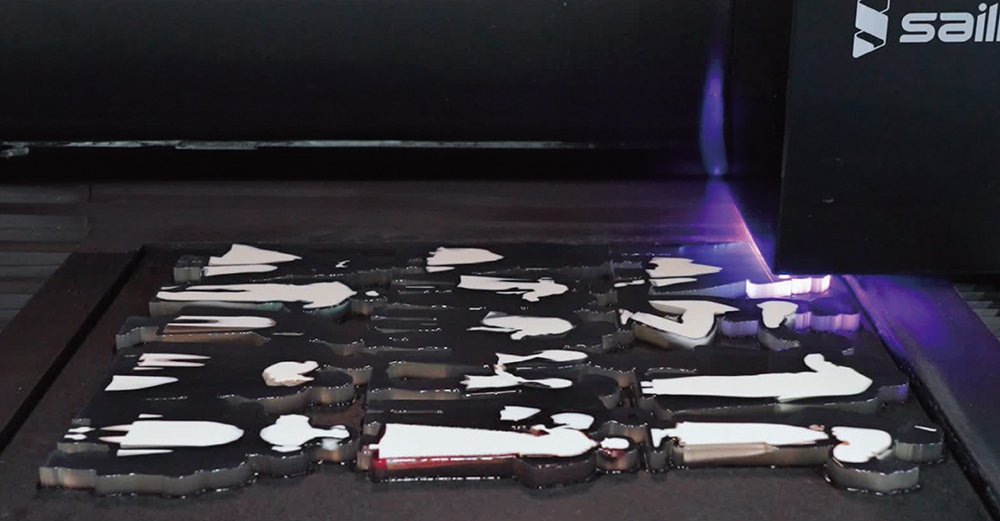

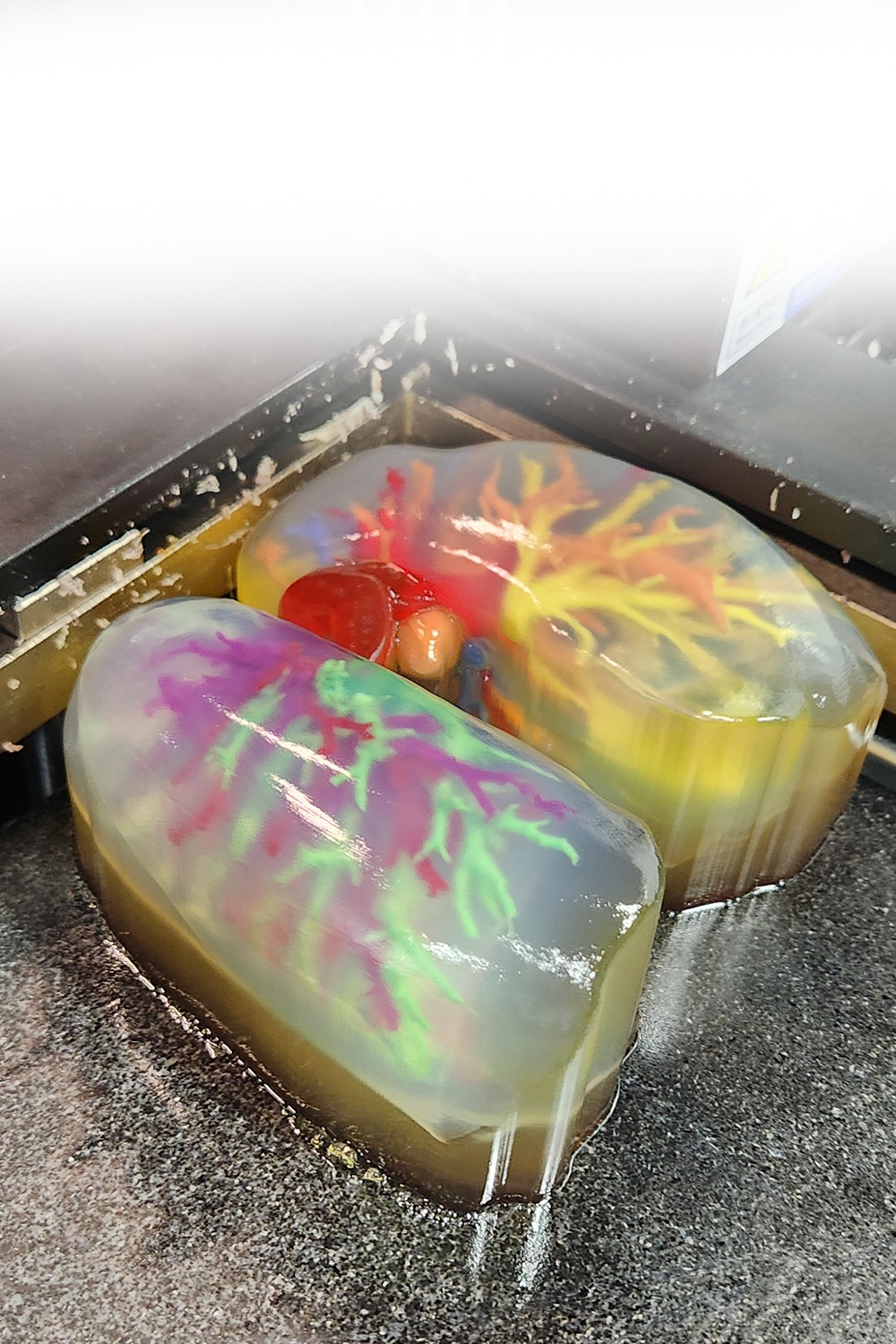

While printing, using UV light to quickly cure and lower one layer to build the next layer. The support material can be dissolved and easy to operate for post-processing.

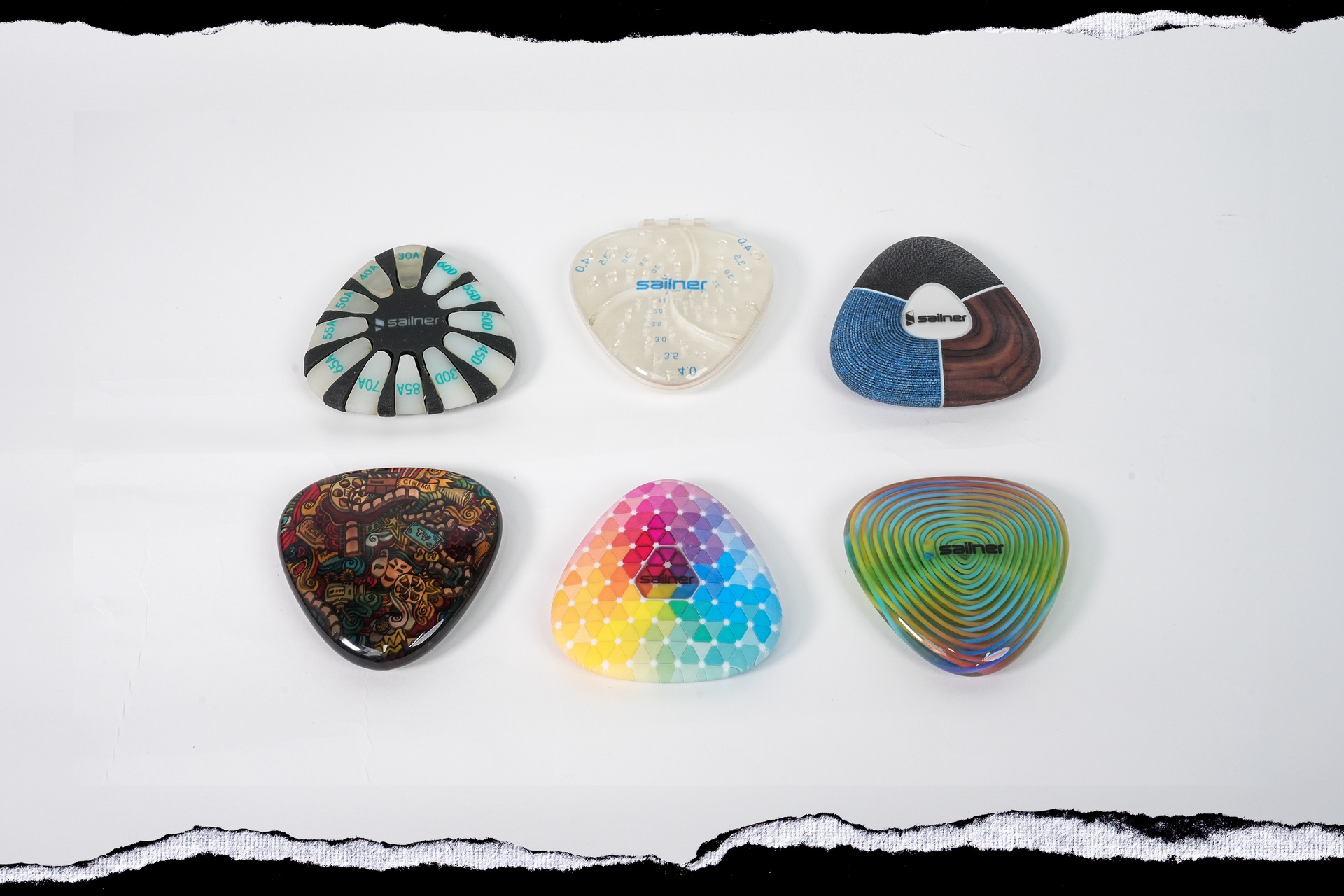

WJP technology is Sailner's unique printing technique, which mix color to print layer by layer to create the desired part color through multiple layers. Multiple nozzles are used to spray and laminate CMYK (colored material), T (transparent material), F (soft material), and S (supporting material) in a complex manner.

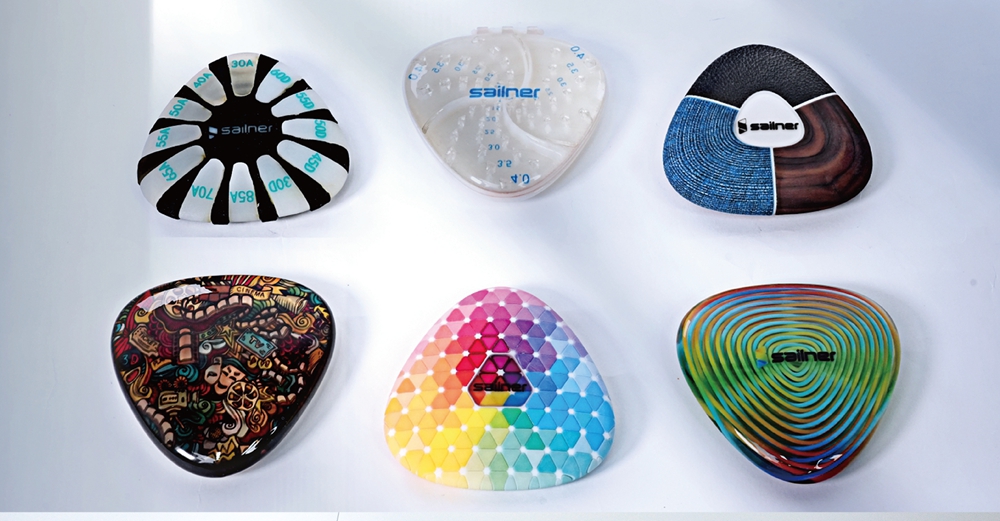

This allows for the production of parts with full-color combinations, transparency, rigidity or rubber like flexibility, as well as complex geometric shapes.

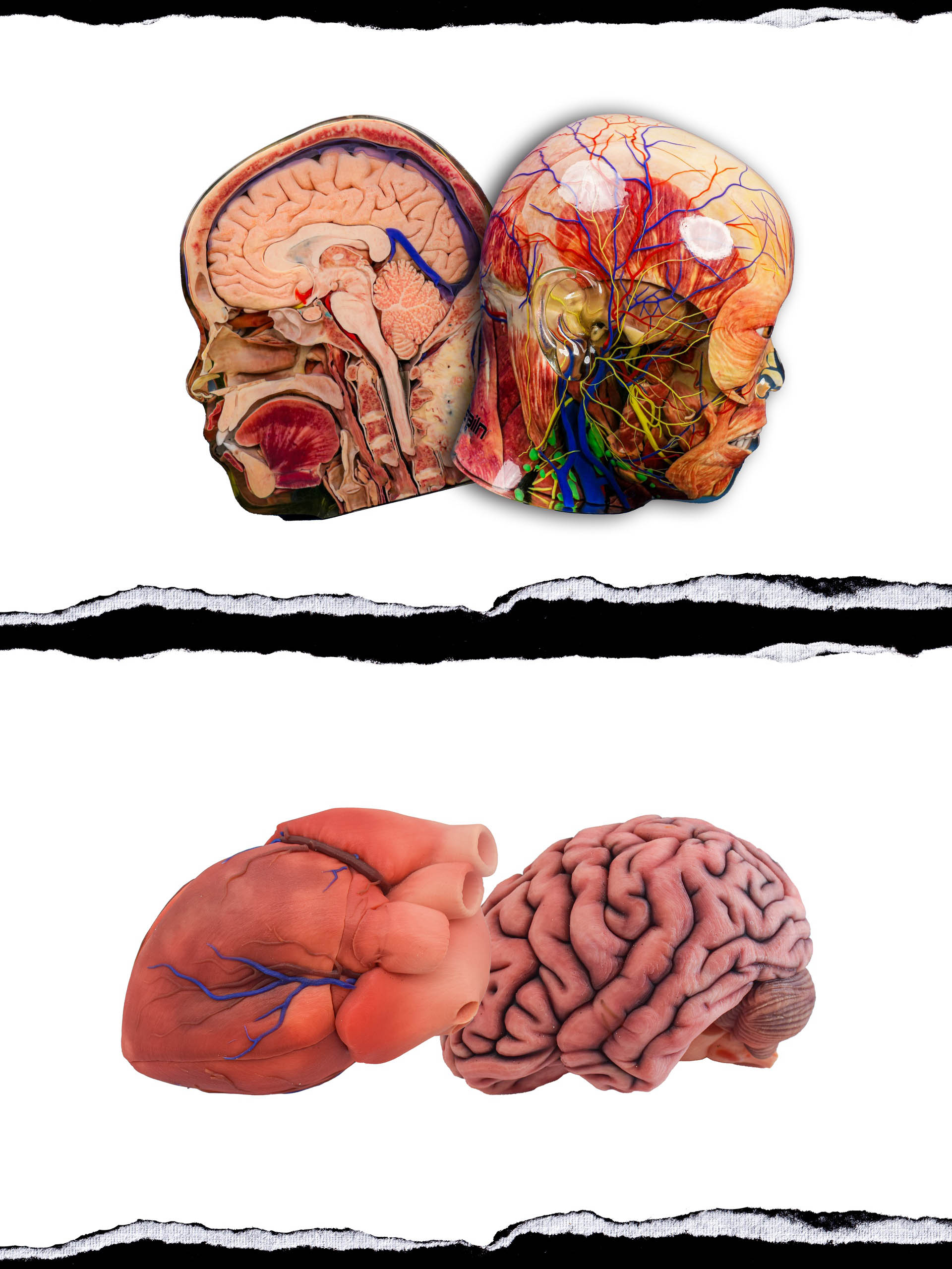

By mixing flexible, soft, and rigid materials, the hardness of the selected area can be adjusted between levels 1 and 100. From a flexible rubber band like Shore A hardness of 22 ± 2 to a very hard Shore D hardness of 90 ± 2. It can reproduce the hardness of bones and soft tissues in human medical models, making it a full-color 3D printer that can be used for simulating surgical model making and human medical model making.

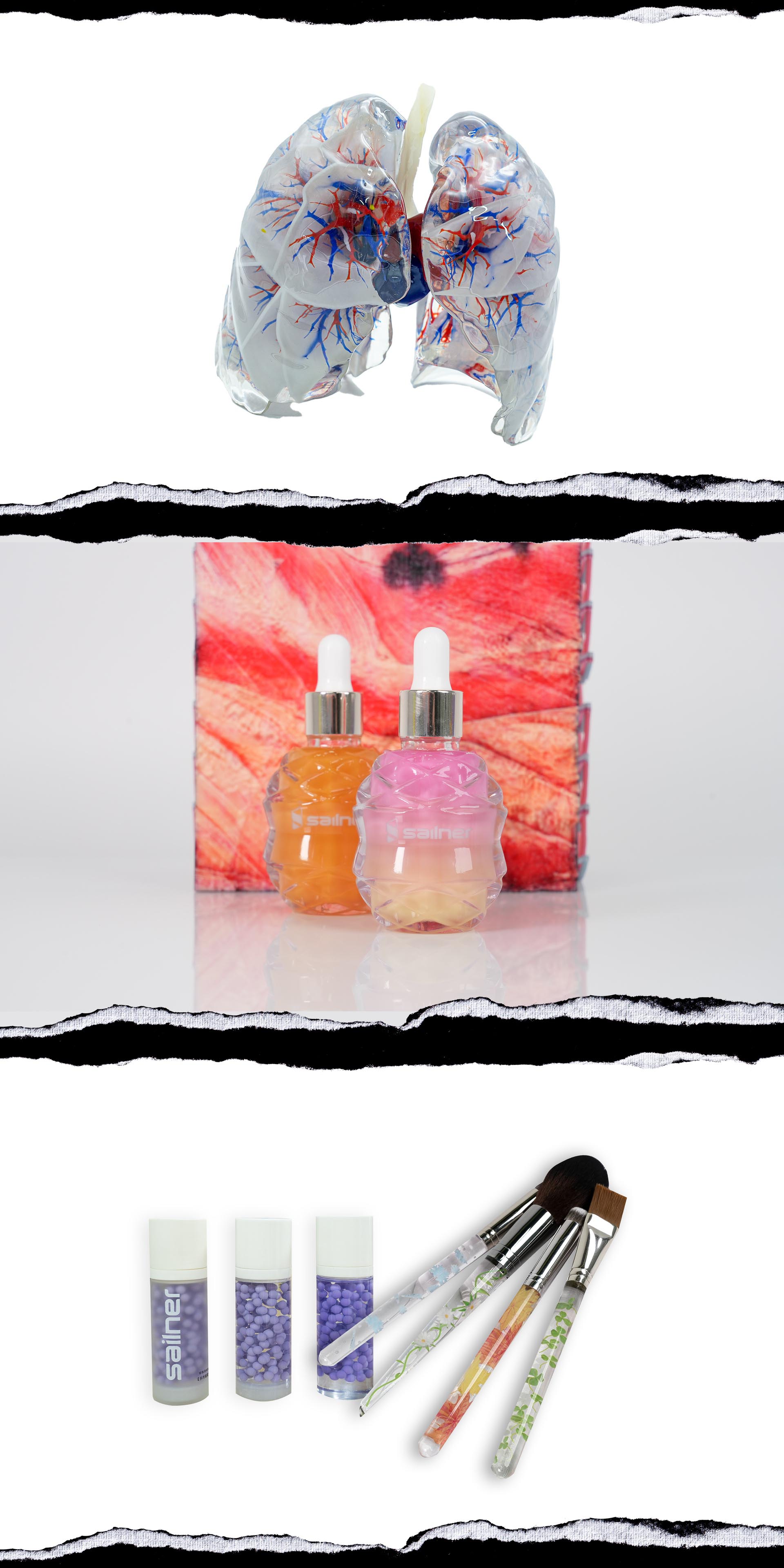

The strong transparent material "RGD110T" with a transmittance of over 90% can be used in combination with CMYWK color material to print individual parts at once, with transparent exterior and full-color interior.
CMYWK color combinations allow for over 1 million gradient color expressions. For single color STL without color information, Sailner Slicer software can select 100000 colors for each part and assign colors. It has excellent color conversion technology, which can convert the RGB colors on the PC screen previewed by the user into * * * similar CMYK colors.

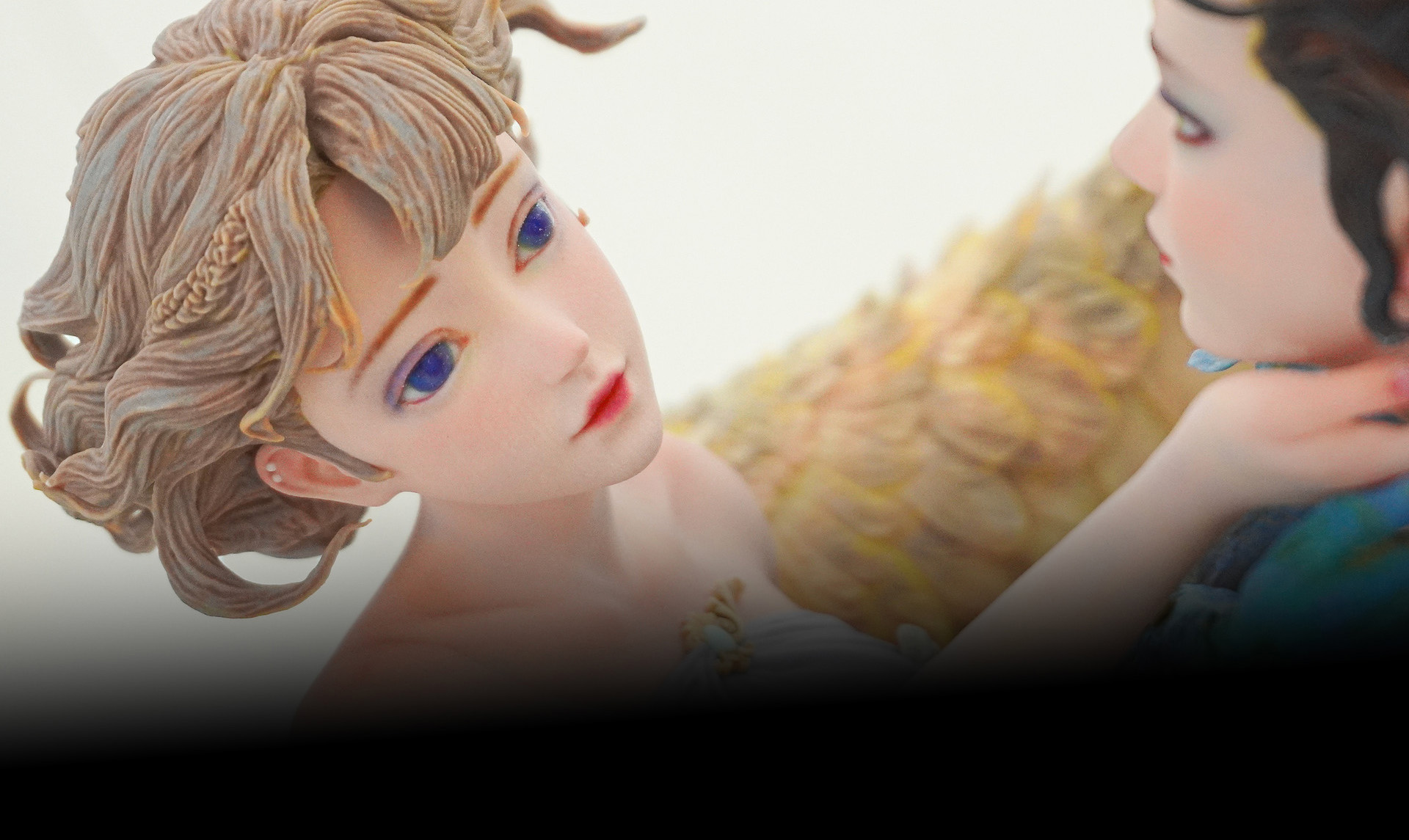

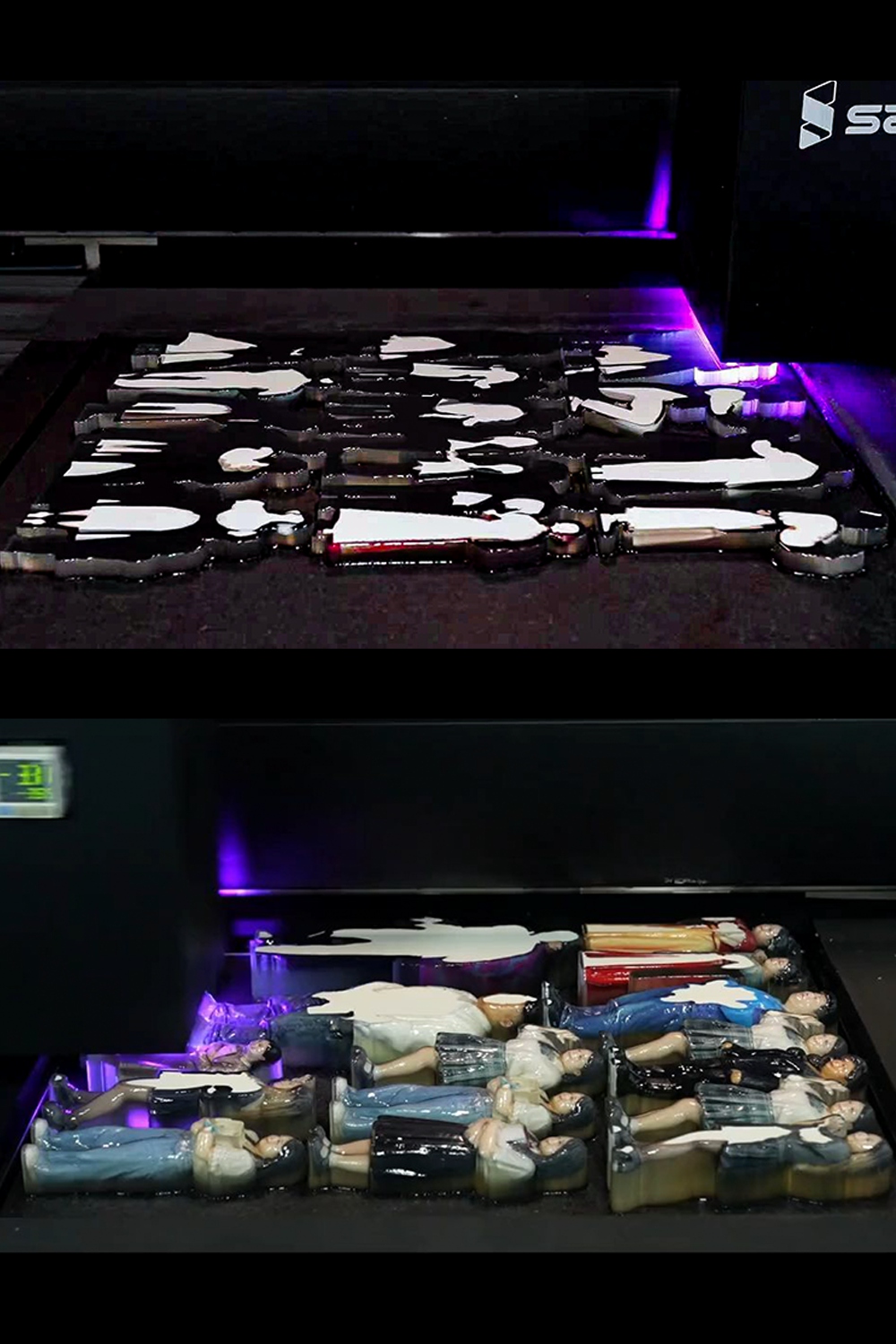

If you want to 3D print full-color scanned data of the entire human body, please take Sailner J400Plus! In addition to vivid color reproduction,fine features on areas such as the ears that require precise expression can be achieved. The large size of J400Plus allows for the simultaneous output of approximately 30 * 12 centimeter full body figures in one tray, the capacity is huge. By providing high productivity for full body figure printing, Sailner 3D printers have once again flourished in the figure printing industry. Full body scan data is compatible with OBJ files with texture mapping, and PLY data that has included multi-color coating and texture.
If you have 3D scan data of objects with clear texture maps, you can print them in full color at any time. RealityCapture photogrammetry is an ideal 3D printer for outputting 3D scan data with high-level color textures. In addition, use Artec3D's full-color 3D scanner series or Scantech's iRealMapping software to reproduce high-resolution full-color 3D scanning data in full color!

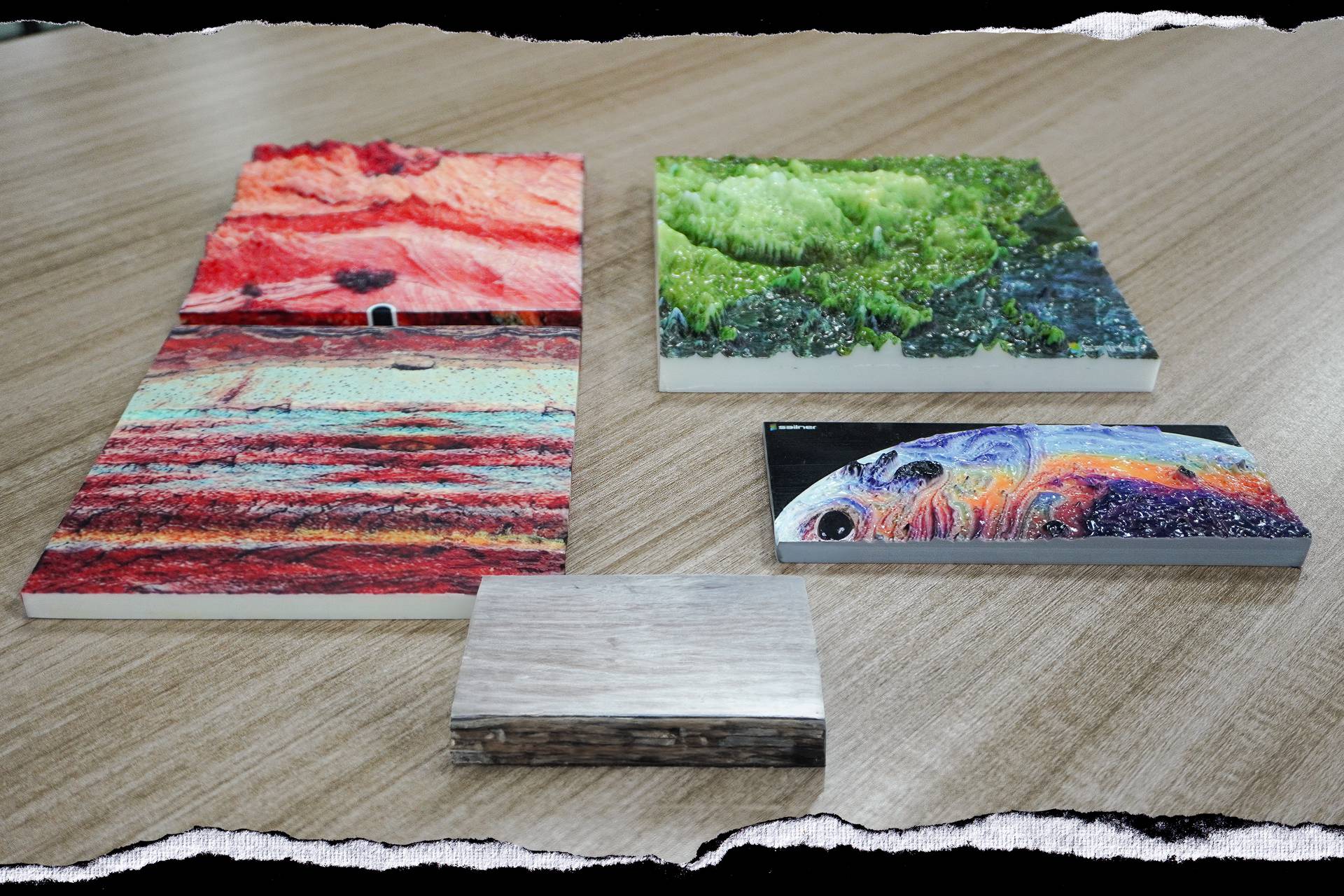

Do you use drones to conduct scanning of large areas through photogrammetry? Or have you conducted 3D scanning to digitize twin buildings images? Now, you can 3D print scanned spaces and fully curled areas. Sailner J400Plus is an ideal 3D printer suitable for 3D sand table of spaces and buildings, terrain mapping, and full-color modeling. In addition, if you have 3D CAD files of buildings, Sailner Slicer can 3D print colored buildings by assigning one million colors on each parts

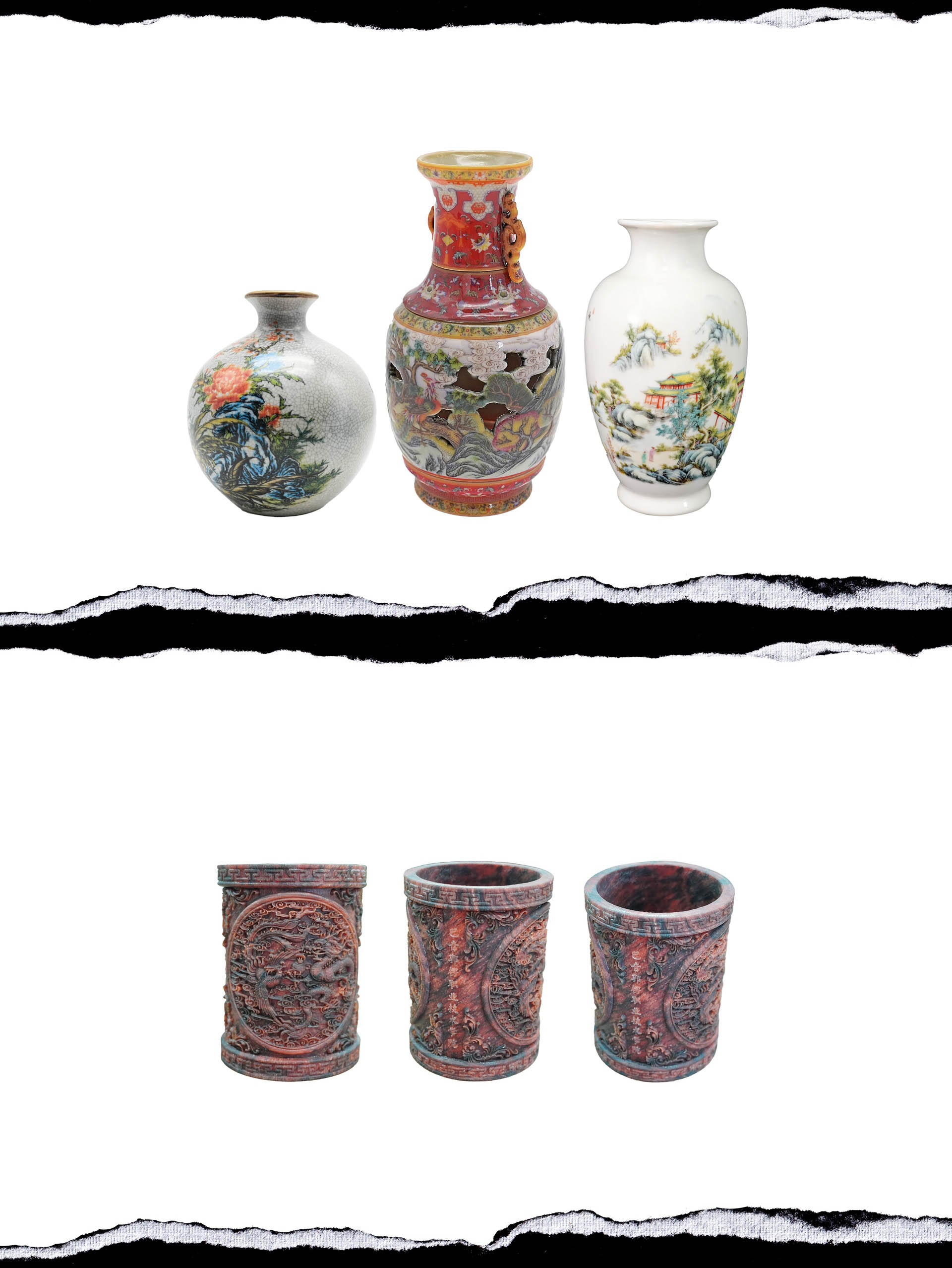

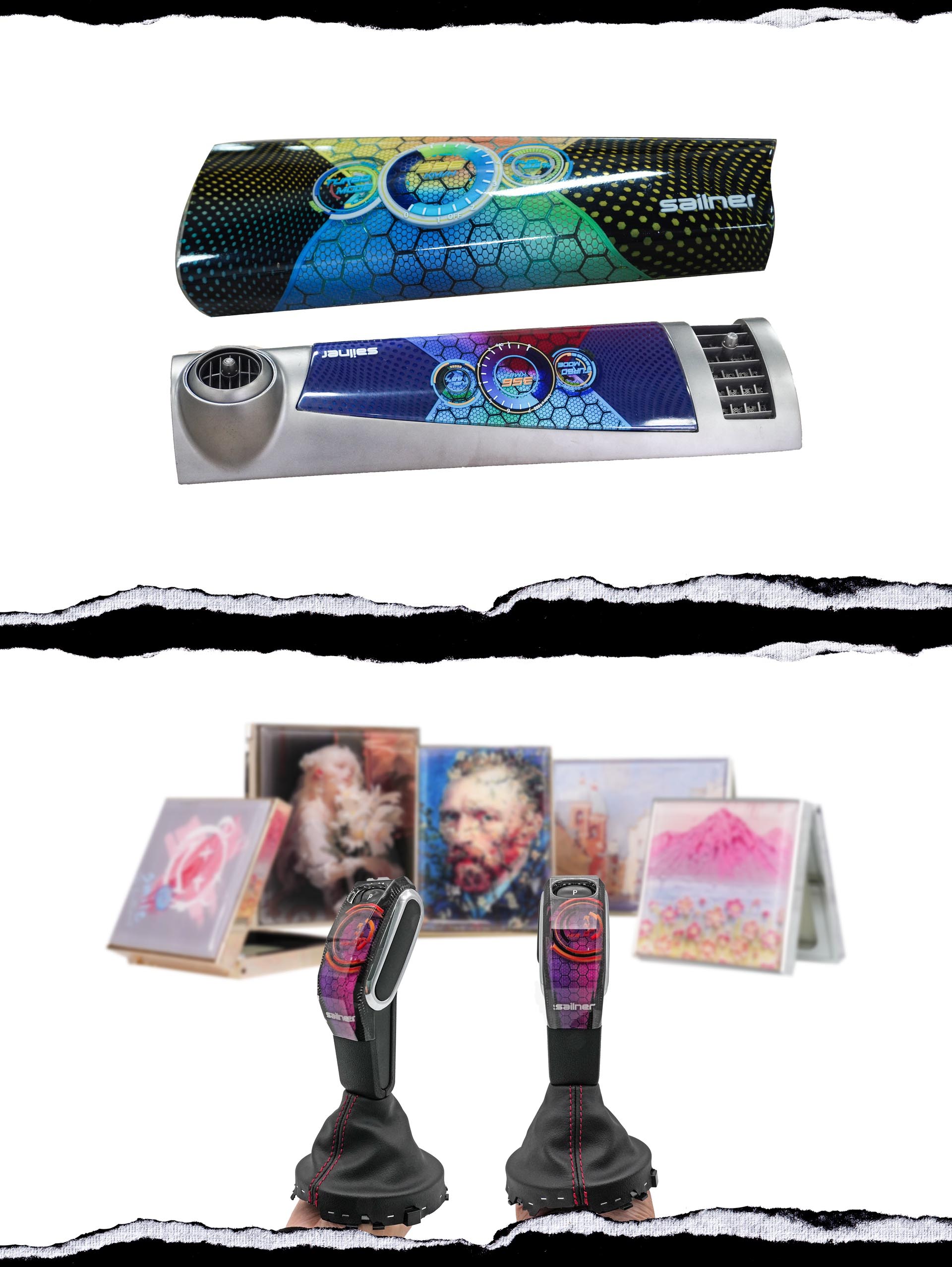

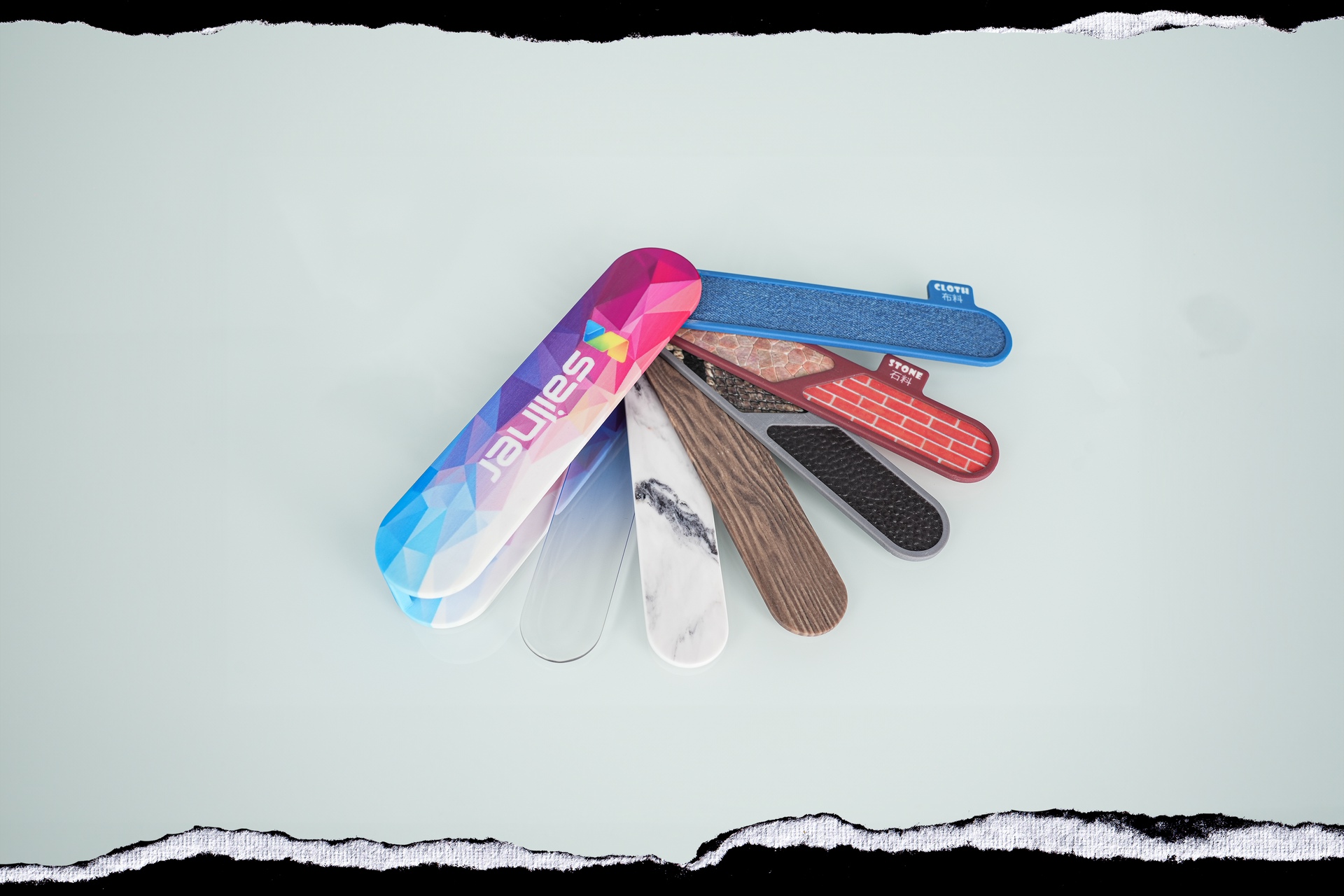

The J400 Plus can directly output 3D data with full-color 3D structural patterns to a 3D printer. According to the designer's design method, turn your ideas into reality through printed outputs that can mimic the surface of different materials such as jeans, leather, wood, bricks, etc. Zbrush, Materialise 3-matic, Geomagic Freeform, Meshmixer and other software can project black and white pattern photos and pattern the mesh surface;

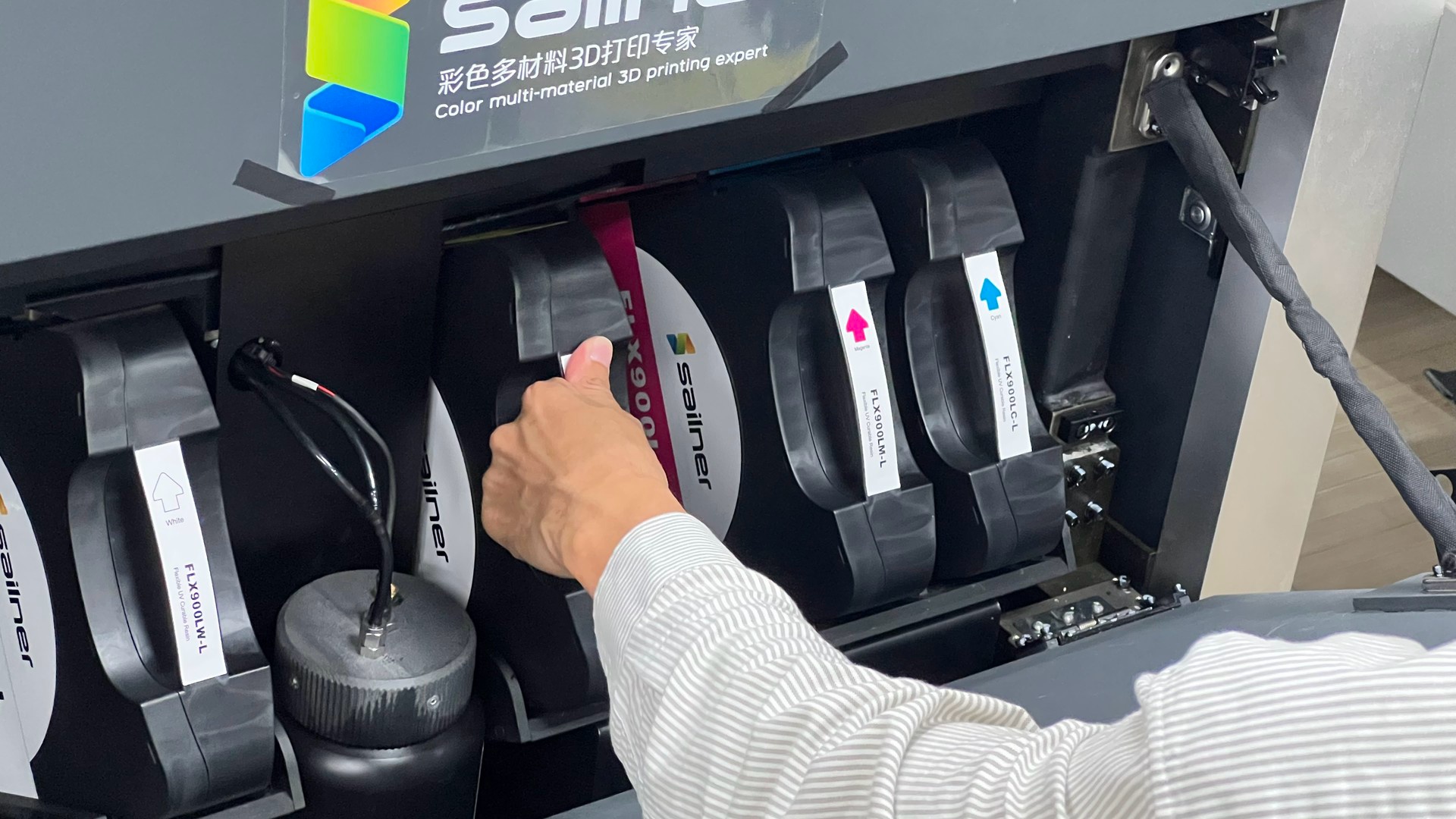

Sailner's WJP technology combines light cured color materials (CMYKW), F (flexible) materials that determine softness and hardness, T (transparent) materials that determine transparency, and S (support) materials that wrap around the model during the output process, combined and stacked in multiple nozzles, allowing designers to print any shape they imagine. Unrestrictedly design your imagined designs and make them a reality! As the domestic distributor of the Sena J400Plus, Fusion Technology Co., Ltd. provides thoughtful support from full-color model output services to the introduction (installation, training, service) of the Sena J400Plus.
| Material composition: | It is divided into colored rigid materials (CMYKW), transparent materials, flexible materials, and support materials. |
| Material Option 1: RGD Series | Composition of bright and full color rigid material options (soft and hard are not acceptable) = CMYKW + T + S material composition |
| Material option 1: FLX series | Full-color flexible material selection, adjustable 100 levels of soft and hard=CMYW+F+T+S combination material composition |
| Output method | Material injection method > WJP (White Inkjet Process) method |
| Highest resolution | 600 x 600 x 1800 dpi |
| Printhead | 3 printhead combinations > spray with a total of 12 channels |
| Number of nozzles | 3840 nozzles (320 nozzles per 1 channel) |
| Build size | 400 x 350 x 250 mm / 395 x 345 x 250 mm |
| accuracy | Models smaller than 50 mm: 20~85 μm Full-size models in builds: 200 μm |
| 3 output modes are available | Economy mode: Laminate thickness 30 μm Texture mode: Laminate thickness 21 μm Advanced mode: Laminate thickness 18 μm |
| Device size and weight | Dimensions: 1170 x 860 x 1235 mm Weight: 670 kg |
| Operating software and systems | Sailner Slicer Software: Data import, build preparation, support generation, 100,000 color designation, 1~100 steps of software and hard step adjustment, slicing, output command (device and connection method: PC or laptop with Sailner Slicer installed, communication with the device through LAN communication) |
| Supported extensions | STL、PLY、WRL、OBJ、WJP |
| Equipment driving environment | Temperature: 20~30°C Relative Humidity: 40~80% |
| Certification status | CE, FCC, RoHS standards |
Talk to salespeople who specialize in Sailner 3D printers to quickly understand your device. From printing samples for equipment review to requesting full-color 3D printing, please leave an inquiry and call our dedicated sales staff for consultation!
